In the rapidly evolving architectural landscape of the UK, the transition from traditional 2D drafting to sophisticated 3D modeling is no longer a luxury—it is an industry necessity. For London-based architects, engineers, and developers, Scan-to-BIM has become the gold standard for renovation, heritage conservation, and complex new builds.
What is Scan-to-Revit?

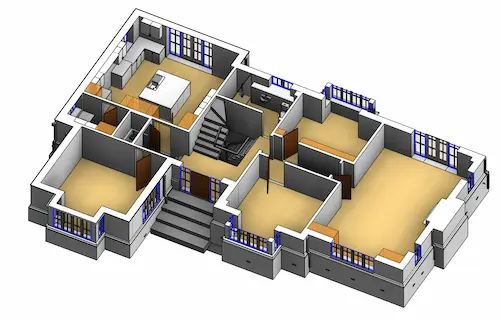

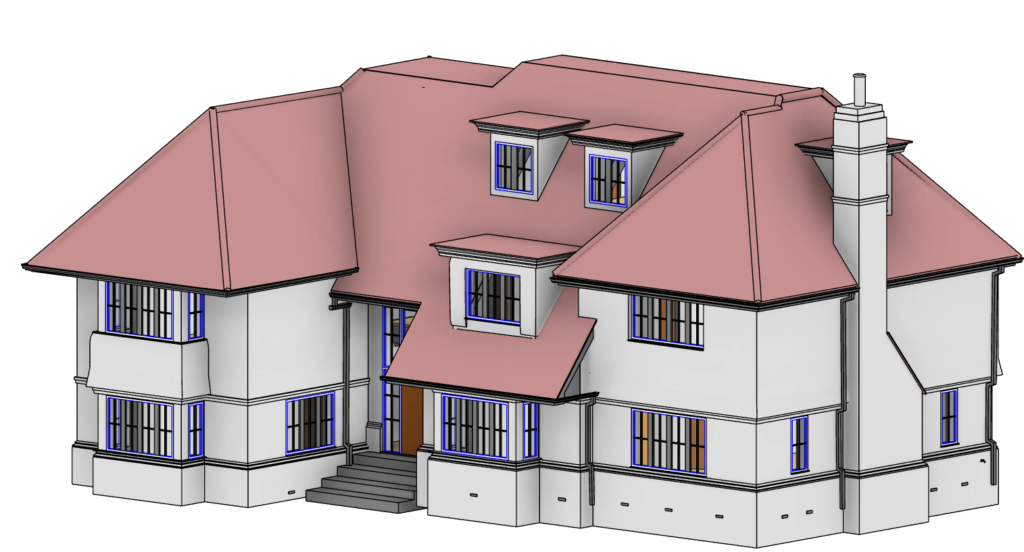

Scan-to-Revit is the process of capturing a physical space using high-precision terrestrial 3D laser scanners and converting that data into a rich, information-filled BIM (Building Information Model). Unlike a standard measured building survey that results in flat drawings, a Revit model provides a three-dimensional “Digital Twin” of the property.
The Strategic Advantage for London Projects
- Clash Detection: In dense London urban environments, knowing exactly where structural elements and MEP (Mechanical, Electrical, and Plumbing) services are located prevents costly site errors during the construction phase.
- Heritage Accuracy: For Grade II listed buildings in Westminster or Chelsea, Revit allows for the precise documentation of irregular historic features that 2D plans simply cannot capture.
- RICS Standards: Professional Revit models are produced in accordance with the RICS Measured Surveys of Land, Buildings and Utilities specifications.
LOD (Level of Detail) Explained
When commissioning a Scan-to-BIM service in London, it is vital to define the Level of Detail required for your Revit family components:
- LOD 200: Basic structural elements (walls, floors, windows) for general planning.
- LOD 300-350: Precise architectural details, including MEP connections and exact structural dimensions, ideal for construction documentation.
- LOD 400: Fabrication-ready models including bolts, welds, and complex assemblies.
Why Choose 3D Laser Scanning Over Manual Surveys?
Traditional surveying methods often miss the “hidden” complexities of London architecture—leaning walls, sagging floors, and non-standard roof pitches. Our scanners capture 1 million points per second with millimeter accuracy, ensuring that your 3D Revit model is a true reflection of reality, not a simplified approximation.
UK Construction Industry Compliance
Adopting BIM aligns your project with the UK Government’s BIM Mandate, which encourages the use of digital technologies to improve efficiency and reduce waste in the built environment.
Ready to start your Scan-to-BIM project?
At Measured Survey 365, we specialize in high-accuracy Revit modeling for residential and commercial sectors across London. Contact us today for a fixed-price quote within 30 minutes.
