Project: Esher, KT10 0SS
Task: Measured Building Survey, 3D Laser Scanning, Topographical Survey
Result: 2D Floor Plans, Elevations, Point Cloud.
Our team conducted a comprehensive measured survey of this distinctive mixed-use townhouse in Esher. Utilising advanced 3D laser scanning technology, we captured precise spatial data to produce accurate 2D floor plans and elevations. Understanding the measured survey cost is crucial for our clients’ planning stages, and we delivered a highly cost-effective, millimetre-accurate solution to support their upcoming architectural redevelopment.

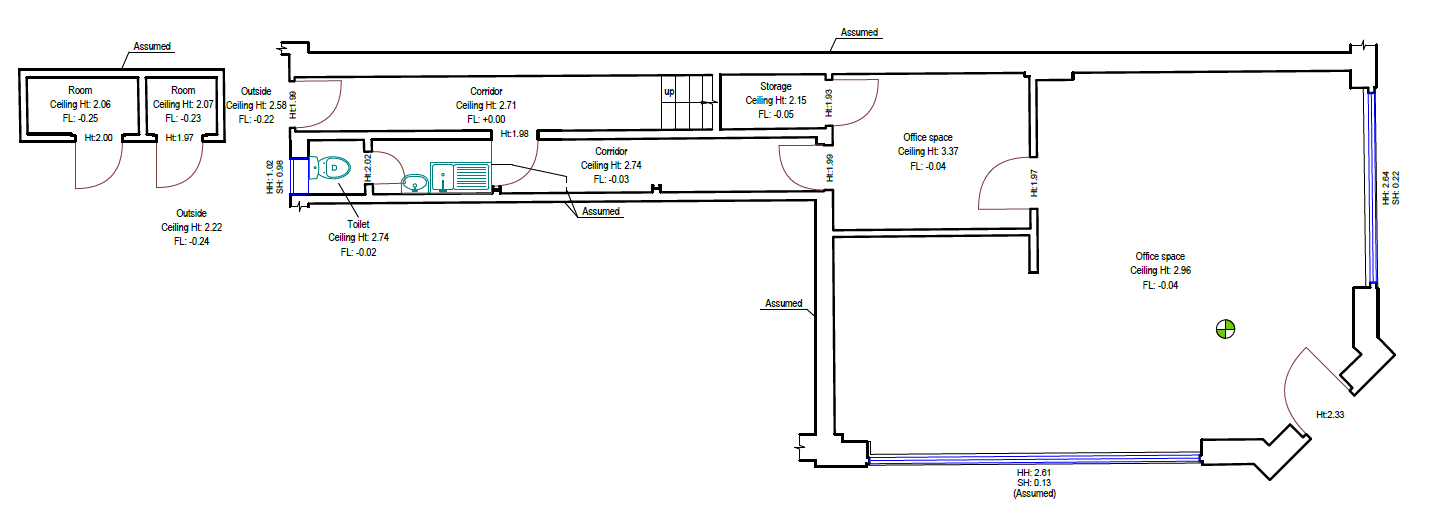

01_Existing Ground Floor Plan

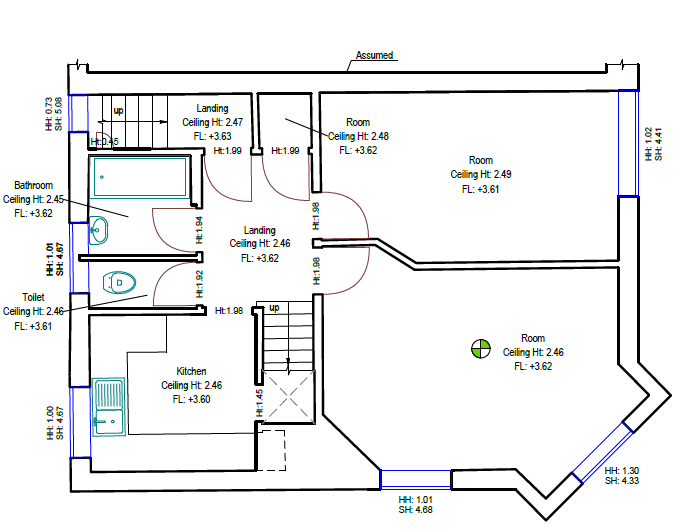

02_Existing 1st Floor Plan

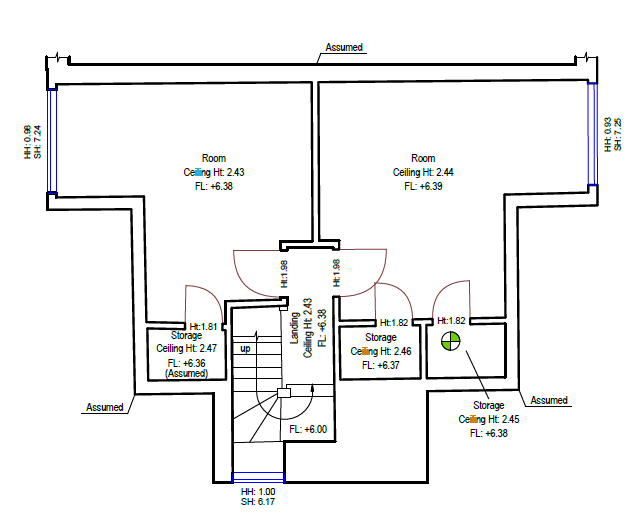

03_Existing 2nd Floor Plan

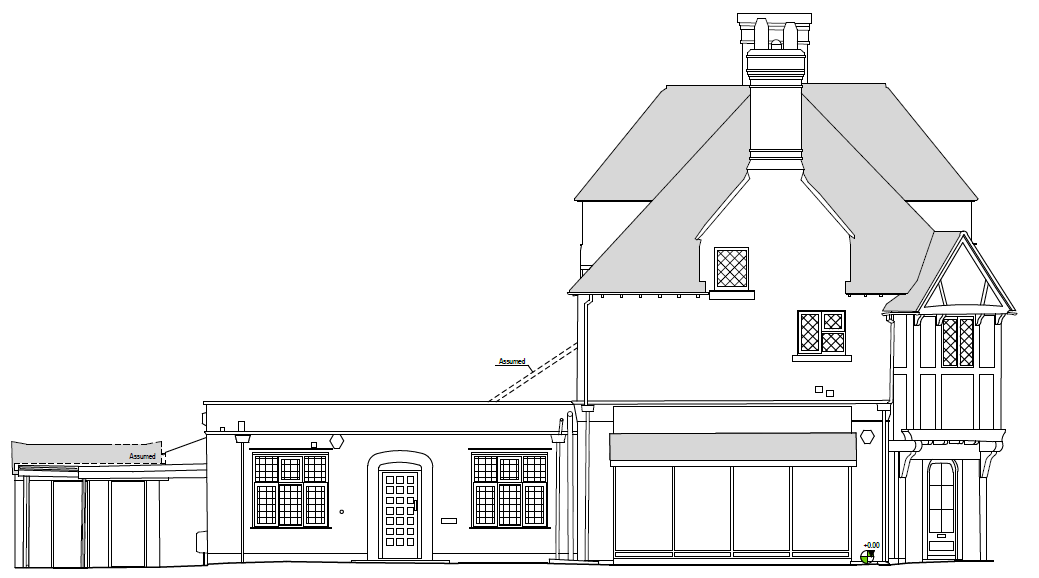

04_Existing front elevation

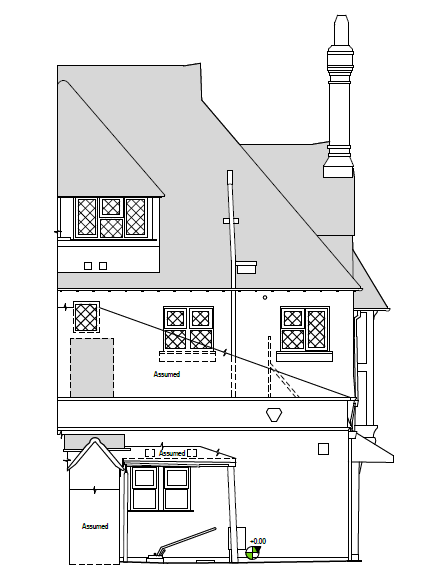

05_Existing side elevation 1

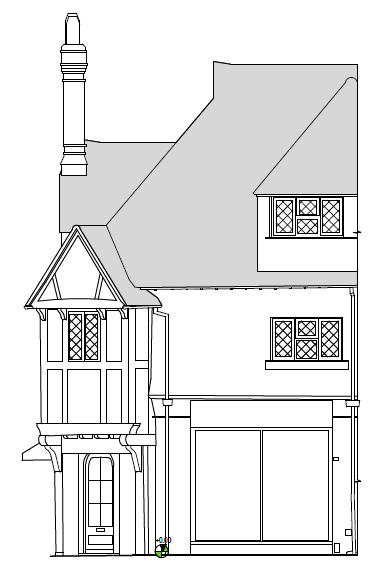

06_Existing side elevation 2

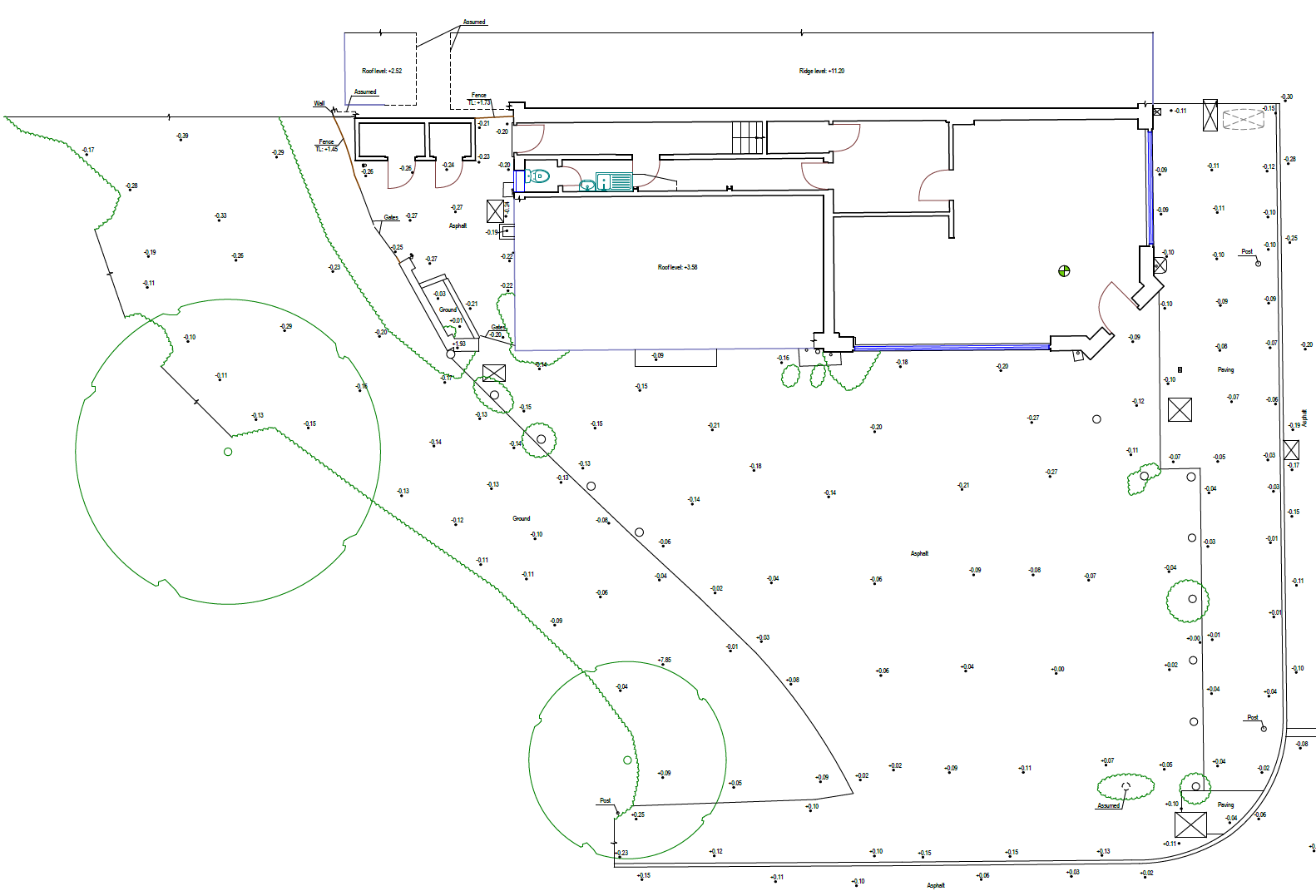

07_Existing Site Plan
